IoT Solutions
Providing modules with various networking technologies (WiFi, BT, IoT, LoRa & WWAN), USI assists customers in obtaining effective solutions for IoT-related products and provides the overall D(MS)2 (Design & Manufacturing Services plus Miniaturization & Solutions) for customer. Our comprehensive design capability and advanced packaging technology allow us to be the best partner for your next generation products. Our home grown in-house capabilities include:
- Design: Circuit Layout/Packaging Design/Electrical and Mechanical Simulation/Thermal Simulation/Debugging & Tuning/Antenna Simulation & Design
- Manufacturing Technology: High Density SMT/Molding Encapsulation/Sputtering Conformal Shielding
- Test & Qualification: Engineering Test/Qualification Test/Reliability Test/Manufacturing Test/Failure Analysis
- Regulatory & compliance test: In-House Pre-Compliance/3rd Party Lab for UL/FCC, PTCRB/Field Test and Carrier Test
- Advanced Packaging Technologies: Stacking, Double Side/Wafer Bumping/Embedded Passive/Active/Antenna Integration/Advanced Interconnection/Molding Under fill (MUF)

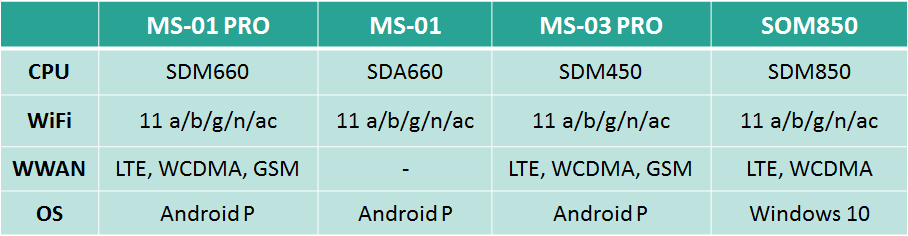

System On Module (SOM)
In terms of product requirements, customers not only look for a miniaturization and robust design but also desire the development time can be shortened and more comprehensive. Our SOM IoT module adopts Qualcomm Snapdragon SDM660/SDA660 and NXP i.MX serial, by integrating a majority of the system functions and also including the application processor, memory, power processing chip, and related wireless transmission functions. The SOM IoT module can provide different choices on specific product applications, such as Rugged Handheld, mobiles POS, Rugged Tablet, Wearable Device, and Car Terminal.
MS-01 PRO
The MS-01 Pro is a highly integrated System On module (SOM) which integrates a system features with Qualcomm SDM660 Processor, Memory, PMIC, Audio CODEC and multiple mode wireless connectivity. MS-01 Pro provided WiFi 11 a/b/g/n/ac with 2x2 MiMo and BT5.0 wireless function. MS-01 Pro is a multi-band Wireless WAN module with LTE-FDD/TDD, WCDMA, CDMA, GSM and GNSS features.
- Qualcomm SDM660 2.2GHz Application Processor
- LPDDR4x SDRAM, eMMC5.1 Flash Memory
- WiFi 802.11a/b/g/n/ac, 2x2 MIMO, DBS, BT5.0
- LTE-FDD/TDD, WCDMA, CDMA, GSM
- GPS/GLONASS/Beidou/Galileo
- 4-lane MIPI DSI Display Interface
- 4-Lane MIPI CSI Camera Interface
- Passed Qualcomm PDN Simulation
- Miniaturization by High Density SMT
- Robust design for Industry Applications(Rugged Handheld, Rugged Tablet, mobiles POS)
-

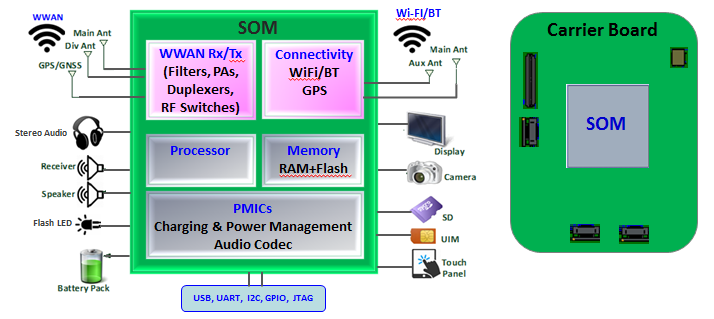

SOM IoT Module Framework -
.png)

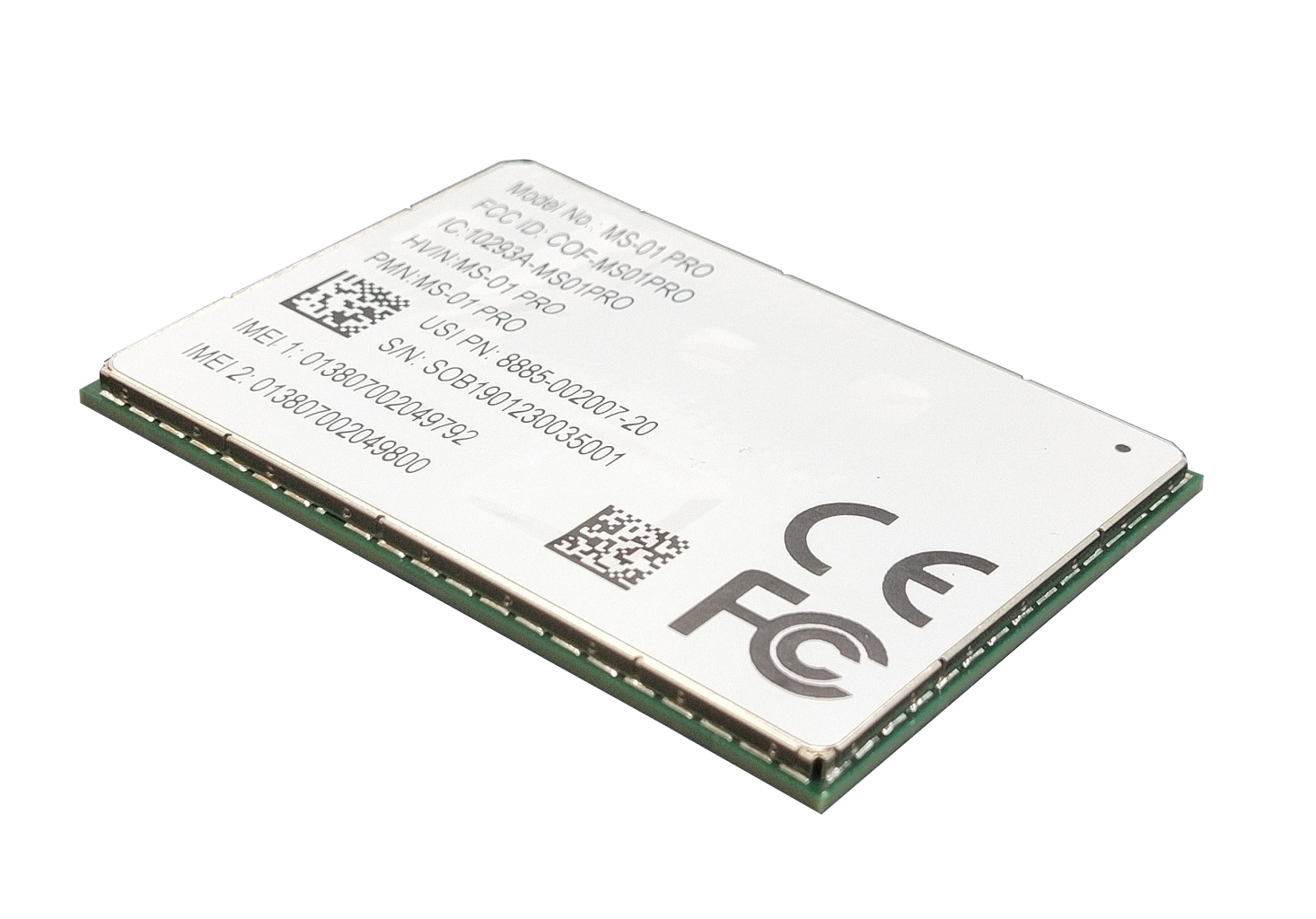

MS-01 PRO -
.png)

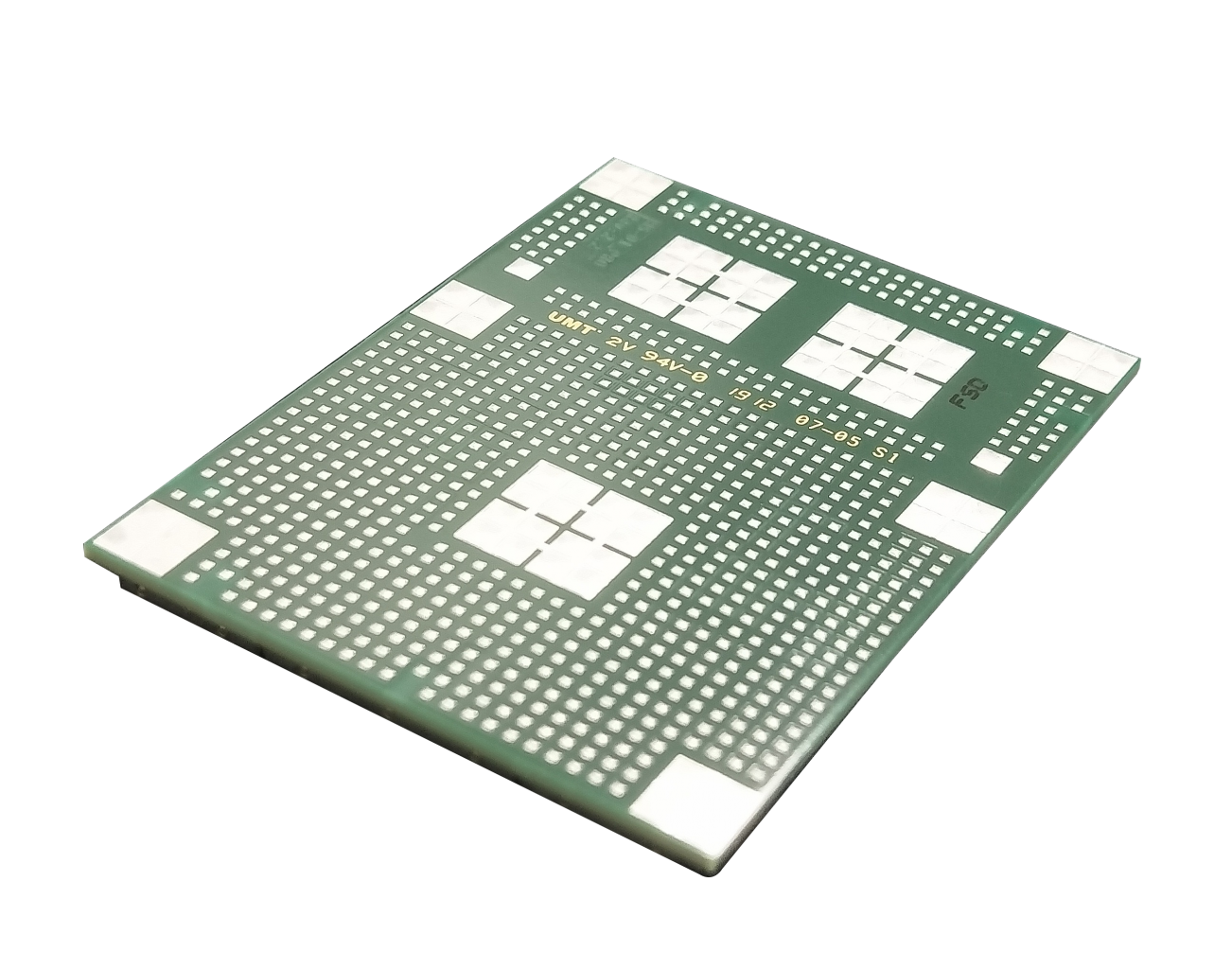

MS-01 PRO
